| ATB-Ultimate Specs |
|||||
|---|---|---|---|---|---|
| Base Price | $9995 | ||||
| Frame Material | Magnesium | ||||
| Chair Weight | 37 lbs | ||||
| Upholstery | Laminated Carbon Fabric | ||||
| Back | Adjustable Angle | ||||
| Rear Wheels | Sun Zero G | ||||
| Rear Tires | Mountain Bike | ||||
| Brakes | Hydraulic disc brakes | ||||
| Push Bar | Mountain bike style | ||||
| Handrims | Hard Anodized | ||||
| Side Guards | Custom Aluminum Plate | ||||
| Footrest | Slotted Foot Plate with Toe Guard |
||||
| Seat Width | 14" - 18" | ||||
| Seat Depth | 15" - 18" | ||||
| Front Seat Height | 19" - 22" | ||||
| Rear Seat Height | 17" - 20" | ||||
| Back Rest Height | 8" - 20" | ||||
| Back Rest Angle | 90°-100° | ||||
| Wheel Camber | 6° standard | ||||
| Warranty | 5 Year (frame only) |
||||
| * See order form for full component specs. | |||||
ATB-Ultimate Wheelchair
At Lasher Sport, we always strive to improve on our designs. So after 3 years of riding the All Terrain Beast through tough terrain, and valuable feedback from current ATB users, we have come up with the ATB-Ultimate.
We based the ATB-Ultimate on a tough but exceptionally light weight magnesium frame. Then we added Frog Legs rear suspension with an adjustable center of gravity. The new ATB rides atop SSun Zero G wheels with 2.25" wide mountain bike tires in the rear, and 12.5" x 2.25" front casters. But it doesn't stop there... we have also included hydraulic disc brakes .

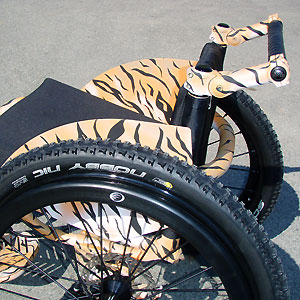

An adjustable angle mountain bike style push bar is also standard for when the trail gets difficult. Finally, side guards are standard on every ATB-Ultimate along with a custom slotted footplate with a toe guard. So basically, we've pretty much included almost every option possible on this chair, and made it standard. All in all, this chair rocks!
- Standard Features:
- Magnesium Alloy frame
- Aluminum billet components
- Aluminum backrest plate
- Mountain Bike Tires
- SSun Zero G wheels
- Adjustable angle push bar
- 12.5" x 2.25" casters
- Adjustable seating
- Adjustable backrest
- Custom Aluminum Side Guards
- Hydraulic Disc Brakes
- 5 Year warranty (frame only)
- Optional Features:
- Custom powder coat color finish
- Vinyl coated or natural fit handrims
- Wheel and tire upgrades
- Seat cushion upgrade
- Calf Strap
- Frame Bumper
